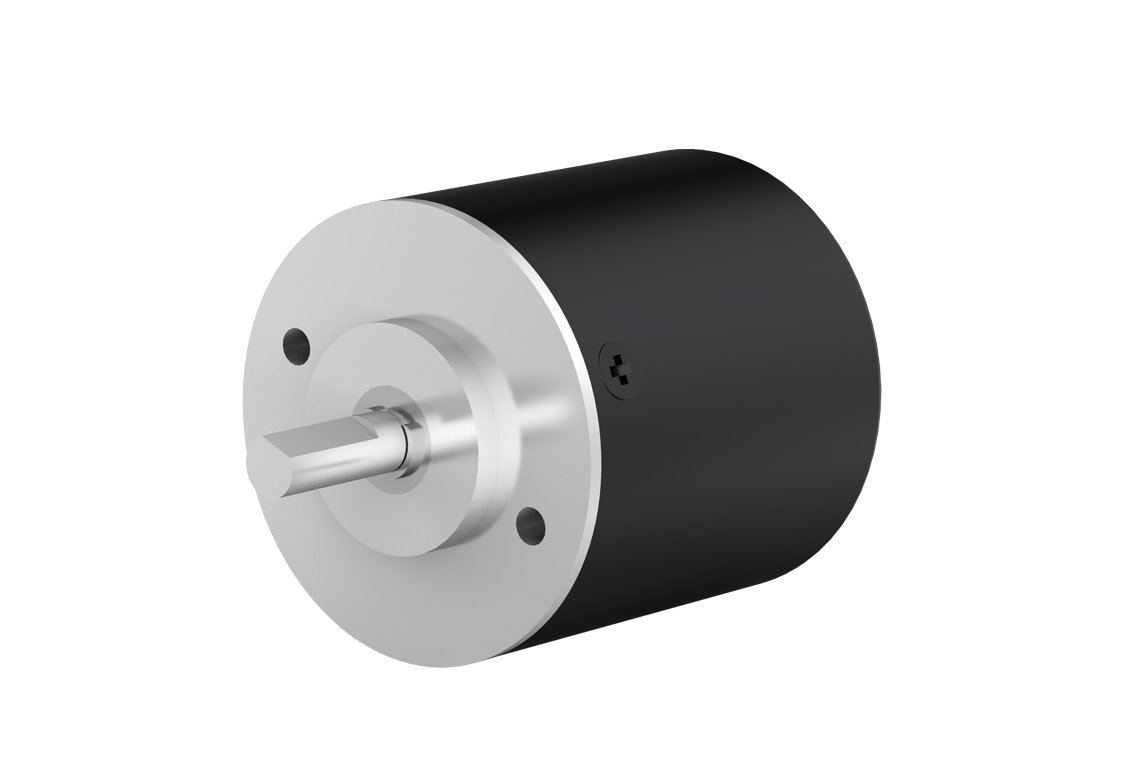

EN-C3A4 Magneto-electric incremental encoder





ELECTRIC PARAMETER

Output Form

Line Driver

Push-pull

Open Collector

Voltage

Output Signal

ABZA/B/Z/

ABZ

Supply Voltage

DC5±5%、DC8V~30V±5%

Working Consumption

100mA(Max)

Response Frequency

300KHz(Max)

Signal Accurancy

T±1/8T

Rise & Fall Time

1000ns(Max)

Signal Top Value

VCC-1.5V(Min)


Signal Low Value

0.6VMax


Insulation Resistance

≥10MΩ(500VDC


Certification

CE、ISO:9000

Resolution

60--4096P/R Notes: Resolution can be customized.

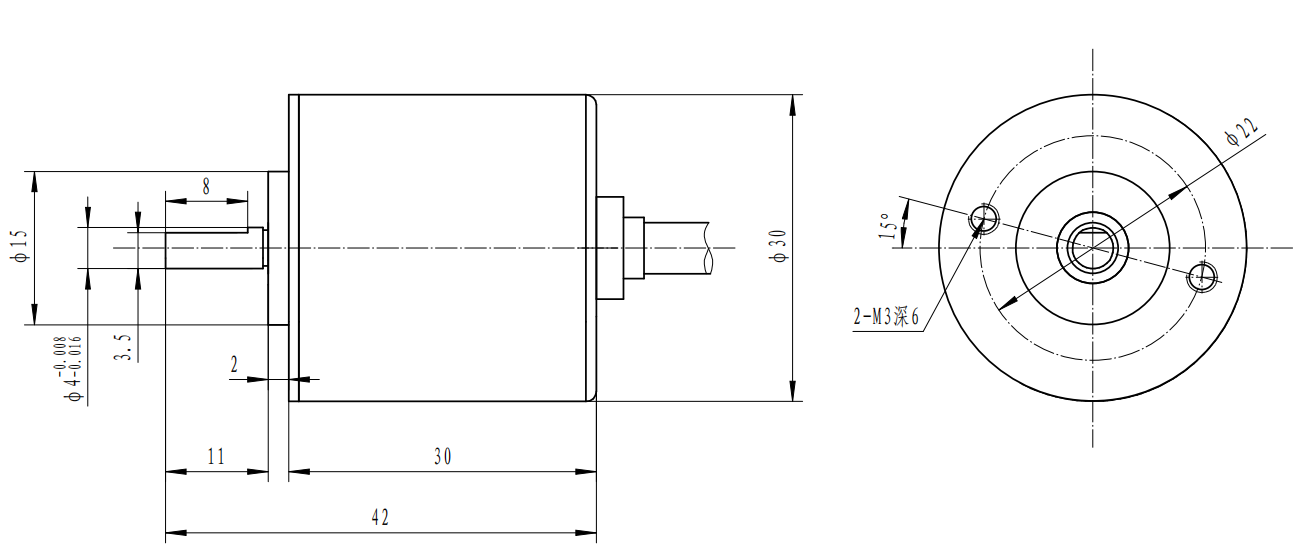

MECHANICAL PARAMETER

Max  RPM

6000rpm

Axle Load

30N(Radial)、20N(Axial)

Starting Torque

0.002N·m(Max  25℃)

Working /Storage Temperature

-20~+85℃/-25~+85℃

Working /Storage Humidity

35-80%RH/35-80%RH

Vibration  Resistance

100m/s2,200Hz

Impact  Resistance

1000 m/s2,10ms

IP Code

IPX54

Main Material

AL 2A12

Shaft Material

304
