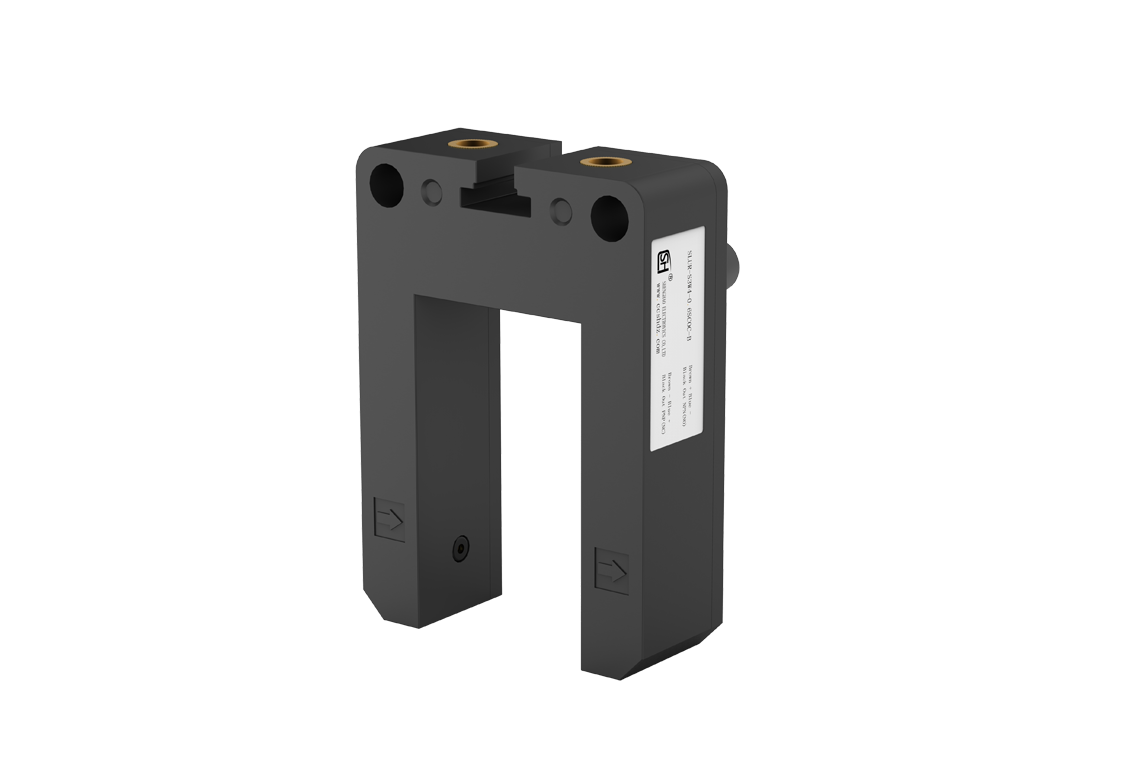

SLUR-GS3W4 Slot Type Photoelectronic Switch








Electric Parameter

Model

SLUR-S3W4-1SCOC-B

Supply Voltage

DC11V~30V±5%

Current Consumption

<20mA

Detection MethodProjective
Detected Distance

30mm

 Detected ObjectOpaque object more than 1.5mm
Detection ChannelSingle channel
Light SourceInfrared Emitting Diode(940nm)
Response Frequency

>1KHz(<1ms)

Protective CircuitPower reverse connection protection;Overcurrent and overvoltage protect circuit outout
Control OutputLoad supply voltage Max:30VDC; Load current Max:150mA (the remaining voltage Max:1VDC);
Indicator LampPower Indicator: Green LED  Action Indicator: Red LED; (NO: Light-Dark NC: Dark-Light)
Voltage Withstand

500VAC 50/60Hz 1min

Ambient LightingIncandescent lamp:<3000Lux;Sunlight<10000Lux
Ambient TemperatureWork:-20℃~65℃; Storage:-35℃~70℃
Ambient HumidityWork:35~80%RH;Storage:35~80%RH
Insulation Resistance

Min:20MΩ(500VDC)

Vibration  Resistance

10~55HzAmplitude fluctuation  1.5mm  X、Y、Z each direction 2h

Impact  Resistance

500m/s2 X、Y、Z each direction 3times

IP Code

IP54

Material

ABS

Weight

About 50g

Cable LengthDefault is 1M, which can be customized according to client's requirements
Certification

CE、UCMP、ISO:9001
