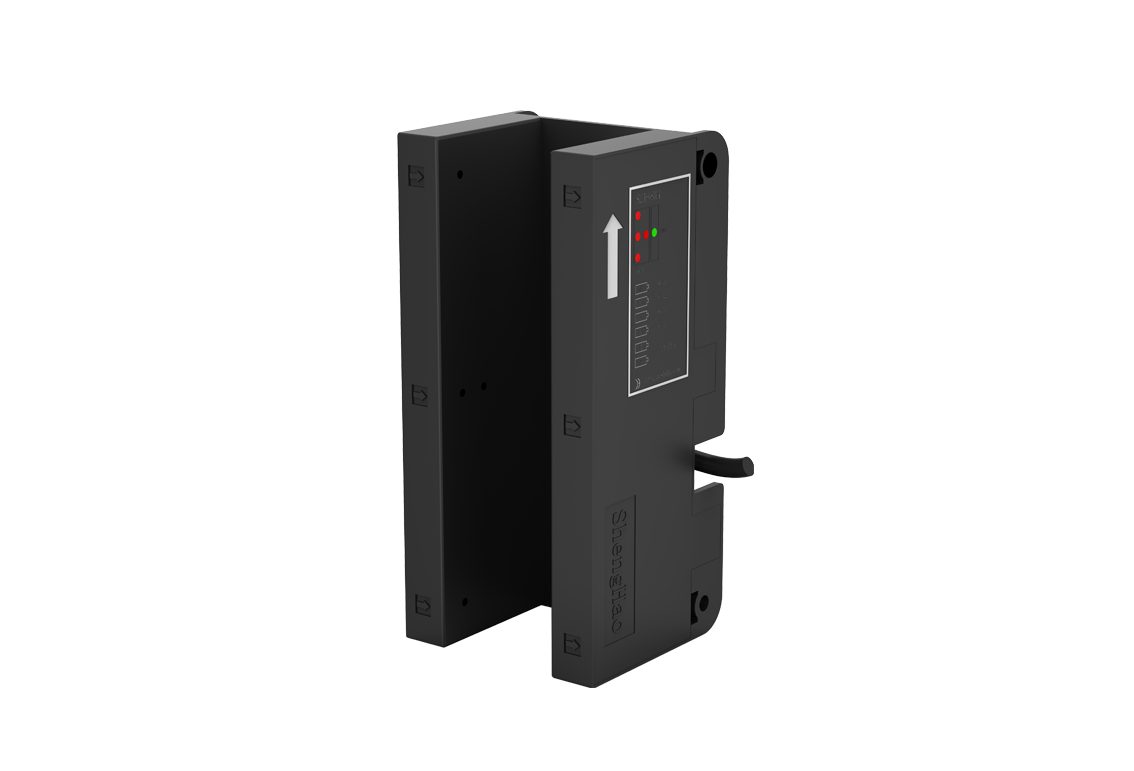

SLUR-S3U4 Photoelectric Switch







Electric Parameter

Model

SLUR-S3U4-1SBA4-D

Supply Voltage

DC15V~35V±5%

Current Consumption

<90mA

Detection MethodProjective
Detected Distance

40mm

Detected ObjectOpaque object more than 1.5mm

Detection Channel

 4 Channel

Light SourceInfrared Emitting Diode(940nm)
Response Frequency

>1KHz(<1ms)

Protective CircuitPower reverse connection protection;Overcurrent and overvoltage protect circuit outout
Control OutputLoad supply voltage Max:30VDC; Load current Max:100mA (the remaining voltage Max:1VDC);
Indicator LampPower Indicator: Green LED  Action Indicator: Red LED; (Dark-Light)
Voltage Withstand

500VAC 50/60Hz 1min

Ambient LightingIncandescent lamp:<3000Lux; Sunlight<20000Lux
Ambient Temperature

Work:-20℃~65℃;Storage:-35℃~70℃

Ambient HumidityWork:35~80%RH;Storage:35~80%RH
Insulation Resistance

Min:20MΩ(500VDC)

Vibration  Resistance

10~55Hz Amplitude fluctuation 1.5mX、Y、Z each direction 2h

Impact  Resistance

500m/s2 X、Y、Z each direction 3times

IP Code

IP65

Material

ABS

WeightAbout 500g
Cable LengthDefault is 2M, which can be customized according to client's requirements
Certification

CE、UCMP、ISO:9001
